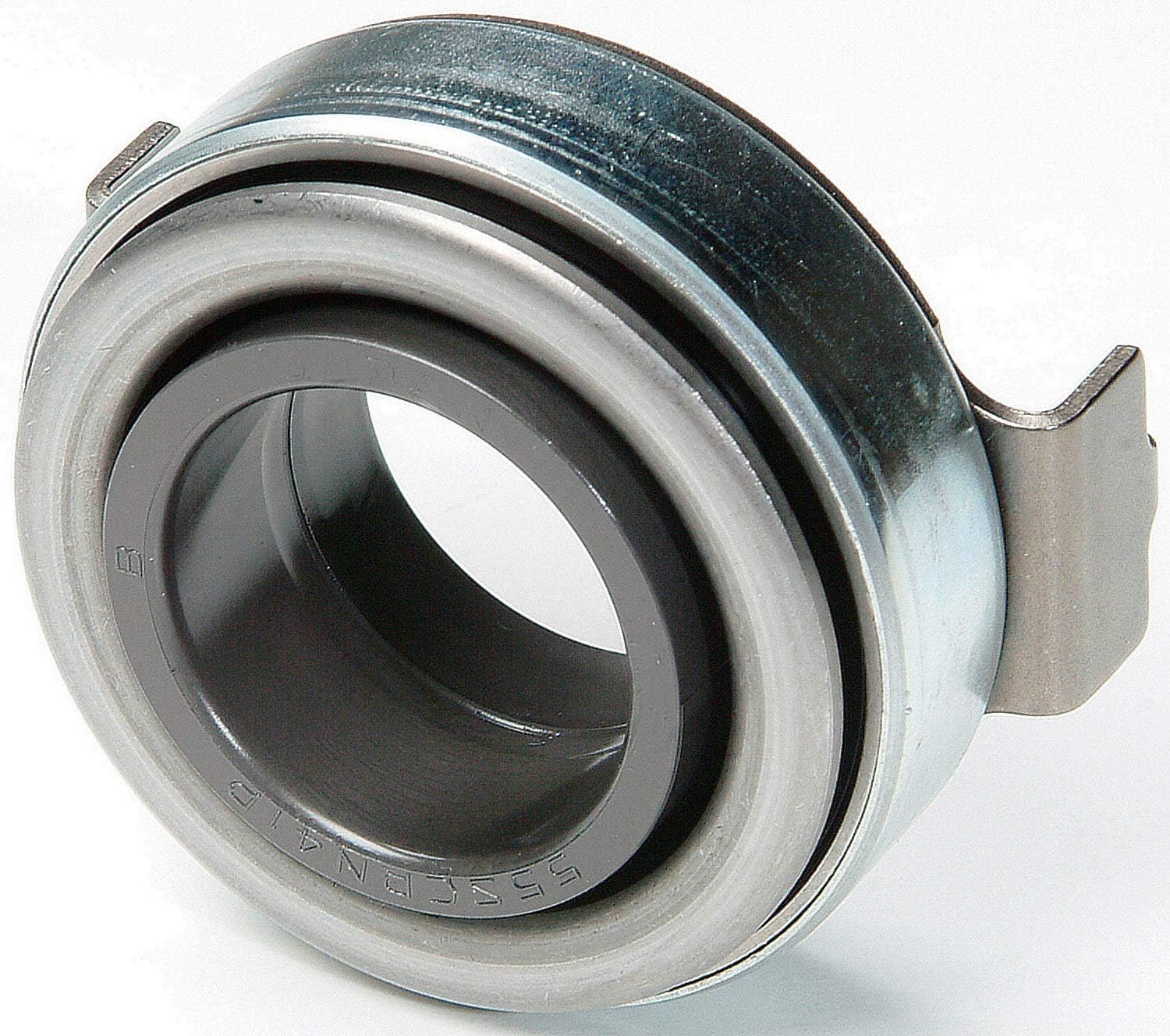

What Is an Automotive Release Bearing?
An automotive release bearing—often called a clutch release bearing—is a self-contained thrust bearing that momentarily collapses the clutch diaphragm spring to separate engine torque from the gearbox.

Built on the foundation of a standard thrust ball bearing, it adds a pivoting collar and sealed lubrication system so that it can slide on a guide sleeve while withstanding axial loads up to 25 kN and rotational speeds of 6 000 rpm or more.

When the driver presses the clutch pedal (or an actuator moves the fork), the bearing advances 5–10 mm, contacts the diaphragm fingers and overcomes the clamp load; the instant it retracts, the clutch re-engages and torque flow resumes.

Compared with an ordinary radial bearing, an automotive release bearing not only supports high-speed combined loads but also enables on-demand torque interruption, greatly enhancing shift comfort and gearbox life.

Working Principle of an Automotive Release Bearing
The core function of an automotive release bearing is to convert a small pedal force into a large controlled thrust that collapses the diaphragm spring and lifts the pressure plate away from the friction disc.

Its operation can be understood in two phases: torque transmission and torque interruption.

1. Torque Transmission
The transmission section behaves like a closed coupling.
When the bearing is fully retracted, the diaphragm spring clamps the disc between flywheel and pressure plate:

- Spring load ≈ 4–8 kN for passenger cars, > 15 kN for heavy trucks.
- Torque flows from crankshaft → flywheel → disc → input shaft; no relative motion occurs.

2. Torque Interruption
A sealed thrust bearing is mounted on a fork or concentric slave cylinder.

When the pedal is pressed, the bearing moves forward 2–4 mm to take up clearance (“air gap”), then an additional 4–7 mm to deflect the diaphragm fingers.

This action reduces clamp load to near zero, allowing the disc to slip and stopping torque transfer to the gearbox.

Example of Status Feedback

- Pedal released → bearing retracted (green indicator light on): clutch closed, power transmitted.
- Pedal fully pressed → bearing at full stroke (red indicator light on): clutch open, gear selection enabled.
- Partial stroke → bearing in intermediate position: ECU displays “clutch slip detected” or launches hill-hold.

Importance of Automotive Release Bearings
Ensuring Shift Reliability
Especially in automated manual transmissions (AMTs) and dual-clutch systems, the release bearing position determines whether the TCU can safely execute a gear change.

If the bearing fails to reach target stroke, the system immediately triggers a fault code, preventing gear grind or vehicle lurch.

Quick Fault Location and Maintenance
They provide a clear audible signature during service: a growling noise with the clutch engaged or high pedal effort instantly points technicians to the release system.

After replacement, re-setting the bearing air gap (typically 1.5–2.0 mm) is essential to restore full clamp load and avoid slip.

Compliance with OE Durability Targets
Almost all global OEMs require release bearings to survive > 1.0 million actuation cycles at −40 °C to +150 °C, with salt-spray resistance ≥ 480 h and seal leakage < 0.5 g over lifetime.

Types of Automotive Release Bearings
1. By Actuation Method
Mechanical Release Bearing:
A fork or cable pushes the bearing sleeve along a carbon-steel guide tube; common in entry-level vehicles and aftermarket kits.

Hydraulic Release Bearing (Concentric Slave Cylinder, CSC):
The bearing and slave cylinder are combined in one sealed unit; hydraulic pressure from the master cylinder directly moves the bearing—no external fork, no lubrication points.

Pneumatic Release Bearing:
Used in heavy-duty trucks; compressed air assists a diaphragm or piston to generate the high thrust required for 430 mm diameter clutches.

2. By Bearing Geometry
Ball-Thrust Type:
Single-row angular-contact balls, grease-filled for life, speed limit ≈ 6 000 rpm, lowest cost.

Roller-Thrust Type:
Cylindrical or needle rollers, higher load capacity, used in commercial vehicles and high-torque applications.

Self-Aligning Type:
The bearing outer race is spherically seated to compensate for misalignment between engine and gearbox—standard on modern passenger cars.

3. By Signal / Feedback Device
None (Pure Mechanical):
No feedback, lowest cost, found in legacy platforms.

Travel-Switch Type:
A micro-switch on the fork detects full-stroke position, sending a clutch-open signal to the engine ECU for idle-speed control.

Hall-Effect Type:
A magnet embedded in the bearing sleeve triggers a non-contact sensor, outputting a continuous 0–10 V position stream for automated transmissions.

Applications of Automotive Release Bearings
Passenger-Car Manual Transmissions
This is the highest-volume application; the bearing must deliver < 0.3 mm stroke variation over the vehicle life to maintain consistent pedal feel and avoid clutch drag.

Automated Manual & Dual-Clutch Transmissions
Here the bearing is actuated by an electric motor or hydraulic unit every few seconds; duty cycle is orders of magnitude higher than in manual boxes, demanding enhanced seal and grease formulations.

Commercial Vehicles & Buses
Bearings rated for 25 kN+ thrust and 2 million cycles are required to cope with long high-torque engagements and frequent stop-start cycles in urban delivery.

Agricultural & Off-Highway Equipment
Dust, mud and vibration demand sealed, reinforced bearings with additional corrosion protection (Zn-Ni coating, FPM seals) and grease qualified for −40 °C cold-start.

Selection Recommendations
For compact FWD cars, a self-aligning hydraulic CSC with integrated Hall sensor is the ideal choice—eliminates pedal free-play, enables engine start-stop and hill-hold.
For heavy-duty trucks, a pneumatically assisted roller-thrust bearing with external limit-switch box is recommended—provides accurate stroke feedback and ensures reliable clutch modulation under 2 500 N·m input torque.

Automotive release bearings are now an essential part of modern powertrains, perfectly combining axial load capacity, speed capability and precise position control in one compact package.

Their wide use in passenger cars, commercial vehicles and automated transmissions reflects their importance in keeping drivetrains smooth, efficient and reliable.

At Union Bearing, we are committed to providing high-quality release-bearing solutions that meet the strict standards of global OEMs.

With advanced heat-treatment, 100 % noise testing and rigorous durability cycles, every automotive release bearing we produce delivers stable, dependable performance in the field.

To learn more, visit the Union Bearing official website—and feel free to contact us for further information or support.
