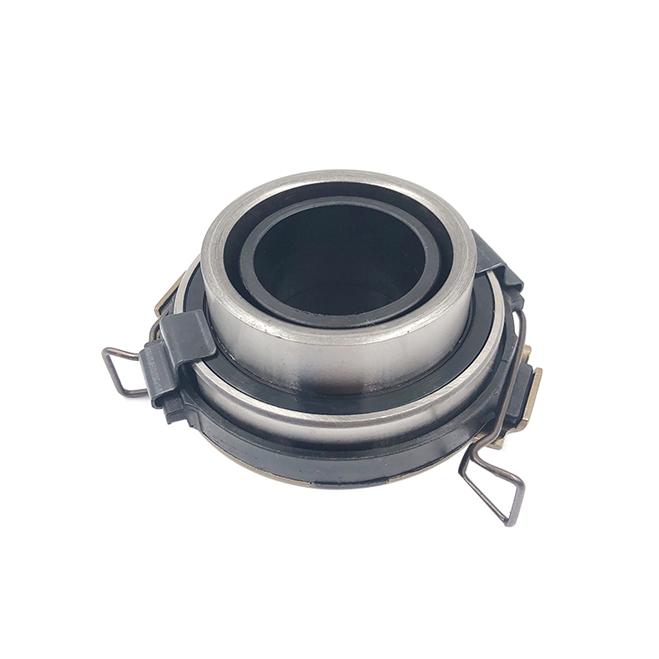

What Is a Clutch Bearing?
A clutch bearing is a self-contained thrust bearing that transmits or interrupts rotary motion between the engine flywheel and the transmission-driven disc.

Built on the foundation of a standard ball or roller thrust bearing, it adds a release mechanism that allows the driver—or an automated actuator—to “push” or “pull” the bearing into contact with the clutch diaphragm spring.

When the pedal (or ECU command) moves the bearing to a defined axial position, the diaphragm fingers are deflected, disengaging the clutch disc and interrupting torque flow to the gearbox.

Compared with an ordinary radial bearing, a clutch bearing not only supports high axial loads but also enables on-demand torque interruption, greatly enhancing drivability and shift quality.

Working Principle of a Clutch Bearing
The core function of a clutch bearing is to convert a small axial input force into a large controlled thrust that overcomes the diaphragm spring load.

Its operation can be understood in two phases: torque transmission and torque interruption.

1. Torque Transmission
The transmission section behaves like a closed coupling.
When the bearing is retracted, the diaphragm spring clamps the friction disc tightly between the flywheel and the pressure-plate:

- Spring load ≈ 4–8 kN for passenger cars, > 15 kN for trucks.
- Torque flows from crankshaft → flywheel → disc → input shaft; no slip occurs.

2. Torque Interruption
A self-aligning thrust bearing is mounted on a fork or hydraulic slave cylinder.

When the driver presses the pedal (or the actuator extends), the bearing moves 2–4 mm into contact with the diaphragm fingers, then an additional 4–7 mm to compress them.

This action reduces clamp load to near zero, allowing the disc to slip and stopping torque transfer to the gearbox.

Example of Status Feedback

- Pedal released → bearing retracted (green indicator light on): clutch closed, power transmitted.
- Pedal fully pressed → bearing at full stroke (red indicator light on): clutch open, gear change permitted.
- Partial stroke → bearing in intermediate position: system displays “creep mode” or “incomplete disengagement.”

Importance of Clutch Bearings
Ensuring Shift Reliability
Especially in automated manual transmissions (AMTs), the clutch bearing position determines whether the TCU can safely command a gear change.

If the bearing fails to reach target stroke, the system immediately triggers a fault code, preventing gear clash or vehicle lurch.

Quick Fault Location and Maintenance
They provide a clear mechanical signature during service: a noisy bearing or high pedal effort instantly points technicians to the release system.

After replacement, re-adjustment of the bearing air gap is essential to restore full clamp load.

Compliance with OE Durability Targets
Almost all global OEMs require clutch bearings to survive > 1.0 million actuation cycles at −40 °C to +150 °C, with salt-spray resistance ≥ 480 h.

Types of Clutch Bearings
1. By Actuation Method
Mechanical Clutch Bearing:
A lever or cable pushes the bearing sleeve along a carbon-steel guide tube; common in entry-level vehicles.

Hydraulic Clutch Bearing (CSC/CRB):
The bearing and slave cylinder are combined in one sealed unit; hydraulic pressure from the master cylinder directly moves the bearing—no fork, no lubrication points.

Pneumatic Clutch Bearing:
Used in heavy-duty trucks; compressed air assists a diaphragm or piston to generate the high thrust required for 430 mm diameter clutches.

2. By Bearing Geometry
Ball-Thrust Type:
Single-row angular-contact balls, grease-filled for life, speed limit ≈ 6 000 rpm.

Roller-Thrust Type:
Cylindrical or needle rollers, higher load capacity, used in commercial vehicles.

Self-Aligning Type:
The bearing outer race is spherically seated to compensate for misalignment between gearbox and engine—standard on modern passenger cars.

3. By Signal Device Type
None (Pure Mechanical):
No feedback, lowest cost, found in legacy platforms.

Travel-Switch Type:
A micro-switch on the fork detects full-stroke position, sending a clutch-open signal to the engine ECU for idle-speed control.

Hall-Effect Type:
A magnet embedded in the bearing sleeve triggers a non-contact sensor, outputting a continuous 0–10 V position stream for automated transmissions.

Applications of Clutch Bearings
Passenger-Car Manual Transmissions
This is the highest-volume application; the bearing must deliver < 0.3 mm stroke variation over the vehicle life to maintain consistent pedal feel.

Automated Manual & Dual-Clutch Transmissions
Here the bearing is actuated by an electric motor or hydraulic unit every few seconds; duty cycle is orders of magnitude higher than in manual boxes.

Commercial Vehicles & Buses
Bearings rated for 25 kN+ thrust and 2 million cycles are required to cope with long high-torque engagements and frequent stop-start cycles.

Agricultural & Off-Highway Equipment
Dust, mud and vibration demand sealed, reinforced bearings with additional corrosion protection (Zn-Ni coating, FPM seals).

Selection Recommendations
For compact FWD cars, a self-aligning hydraulic CSC with integrated Hall sensor is the ideal choice—eliminates pedal free-play and enables engine start-stop.
For heavy-duty trucks, a pneumatically assisted roller-thrust bearing with external limit-switch box is recommended—provides accurate stroke feedback and ensures reliable clutch modulation under 2 500 N·m input torque.

Clutch bearings are now an essential part of modern power-train architectures, perfectly combining axial load capacity and precise motion control in one compact package.

Their wide use in passenger cars, commercial vehicles and automated transmissions reflects their importance in keeping drivetrains smooth, efficient and reliable.

At Union Bearing, we are committed to providing high-quality clutch-bearing solutions that meet the strict standards of global OEMs.

With advanced heat-treatment, 100 % noise testing and rigorous durability cycles, every clutch bearing we produce delivers stable, dependable performance in the field.

To learn more, visit the Union Bearing official website—and feel free to contact us for further information or support.
