What Is a Tapered Roller Bearing?

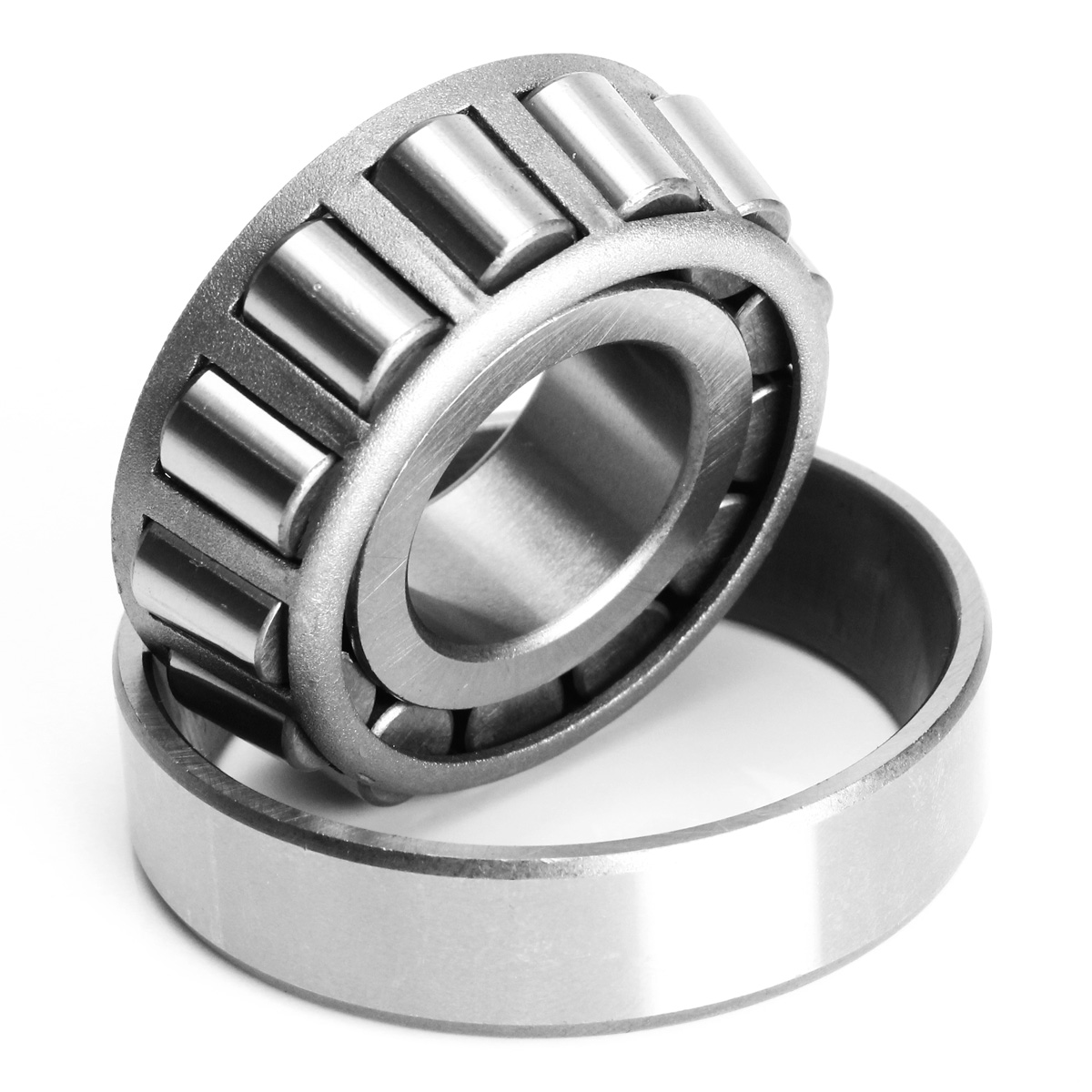

A tapered roller bearing is a rolling-element bearing that uses conical rollers and raceways to carry both radial and axial loads in a single assembly.

Built around a separable “cone” (inner ring) and “cup” (outer ring), the rollers are profiled so that their axes converge at a common point on the bearing axis—creating true rolling motion and eliminating sliding friction .

When the shaft rotates, load is transmitted through line contact between rollers and raceways; the steeper the cup angle, the higher the axial capacity, making it possible to tune one bearing for combined or predominantly thrust duty .

Compared with a deep-groove ball bearing, a tapered roller bearing not only handles 2–4× heavier combined loads but also allows clearance or preload to be adjusted during installation, greatly extending service life in high-shock applications.

Working Principle of a Tapered Roller Bearing
The core function is to convert radial and axial shaft forces into pure rolling motion while minimising heat generation.

Its operation can be understood in two stages: load distribution and speed matching.

1. Load Distribution
Each roller contacts both raceways along a line rather than a point, spreading load over a large surface area.
Radial force is carried mainly by the large end of the cone, while axial force is transferred through the roller/cup contact; the resultant force vector always intersects the bearing axis, so no moment is created .

2. Speed Matching
Because the roller apex coincides with the raceway apex, every point on the roller surface has the same tangential speed as its mating raceway—eliminating scrubbing and reducing wear .

Example of Status Feedback

- Bearing preloaded → < 0.05 mm axial play (green LED): stiffness optimised.
- Excessive roller-end wear → vibration sensor > 4 g (red LED): schedule re-set.
- Oil film broken → temperature rise > 15 °C in 10 min: alarm triggers auto-stop.

Importance of Tapered Roller Bearings
Handling Combined Loads in One Seat
Especially in truck hubs and wind-turbine gearboxes, a single tapered bearing replaces one radial + one thrust bearing, cutting weight and assembly length by 30 % .

Adjustable Clearance & Preload
Technicians can vary the axial position of the cone relative to the cup to obtain negative clearance (preload), boosting system stiffness and positional accuracy—vital for machine-tool spindles.

Compliance with ISO Standards
All metric series follow ISO 355, ensuring global interchangeability; inch series follow ABMA standards, so a cone made in Europe will fit a US-produced cup.

Types of Tapered Roller Bearings
1. By Row Count
Single-Row:
Most common; carries radial + axial in one direction; thrust capacity ≈ 60 % of radial rating .

Double-Row (TDO / TDI):
Back-to-back or face-to-face mounting in one cartridge; handles thrust in both directions and higher radial loads.

Four-Row (TQO):
Used in rolling mills; alternating converging/diverging rows share enormous radial loads up to 10 MN.

2. By Load Density
Standard-Capacity:
General-purpose, car transmissions, conveyor pulleys.

High-Capacity (NSK example):
Optimised roller crowning adds 25 % load rating and doubles life; weight cut 30 %—ideal for 15 MW wind gearboxes .

3. By Integration
Cup & Cone Set:
Loose components for field replacement.

Pre-Set Hub Unit:
Factory-locked clearance, sealed and greased for life—common in automotive wheels .

Applications of Tapered Roller Bearings
Automotive Wheels & Transmissions
Front and rear hubs, differentials and manual gearboxes rely on sealed pre-set tapered hubs that survive 300 000 km with zero maintenance .

Rail Freight Cars & Locomotives
Axle-box bearings tolerate 25 t axle-loads and vibration from track joints; special case-carburised steel prevents derailment under impact.

Wind-Turbine Gearboxes
Planet and high-speed stages use high-capacity double-row tapered bearings; the NSK 25 % rating upgrade lets OEMs downsize housings and save 30 % mass .

Construction & Agricultural Equipment
Crane slew drives and tractor final drives employ large-bore four-row assemblies that carry static loads up to 5 MN while permitting slow oscillation.

Machine-Tool Spindles
Back-to-back paired 7000-series bearings with light preload give < 1 µm run-out at 8 000 rpm, meeting ISO P4A precision grade.

Selection Recommendations
For passenger-car front wheels, specify a sealed pre-set hub unit (DAC 3rd gen) with integral ABS encoder—eliminates adjustment and guarantees 300 000 km life.
For 15 MW wind-turbine planet carriers, choose a high-capacity double-row tapered roller bearing with optimised crowning—25 % higher load rating and double life cuts downtime and crane calls .

Tapered roller bearings are now an essential part of modern rotating machinery, perfectly combining radial capacity, axial control and adjustable preload in one compact assembly.

Their wide use in cars, trains, wind turbines and steel mills reflects their importance in keeping systems efficient, light and reliable.

At Union Bearing, we stock every series from 30200 to 32300, plus sealed hub units and precision P4A pairs, all manufactured from premium chrome steel and 100 % noise-tested.

With custom preload matching, rapid prototyping and global logistics, every tapered roller bearing we deliver is ready to spin the world—quietly and efficiently.

To learn more, visit the Union Bearing official website—and feel free to contact us for datasheets, interchange tables or next-day samples.
